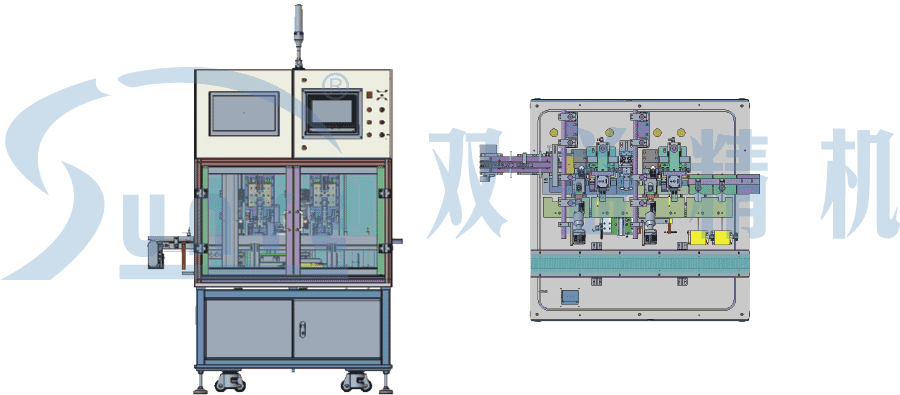

（Custom-made Single Machines）4.IMAGE INSPECTION MACHINE FOR ROLLER BEARING INNER RING CAMBER

This equipment is mainly used to inspect the defects such as black-skin, the knocked wound?ed, rust, grinding scar of the inner ring end face, inner chamfer, inner diameter surface, and the size difference of the convex part of roller bearing inner diameter.

Technological process：

Conveying → Surface A appearance detection → Surface A convexity detection → Flipping → Surface B appearance detection → Surface B convexity detection → Appearance unqualified kick → crown unqualified kick → qualified product discharge
